Rapid Response
Rapid Response
Ideal for reactive, single-day repair works, our Rapid Response signals provide easy transportation and quick setup to ensure seamless traffic flow with minimal disruption. With a battery life suitable for 24-hours, these ultra-portable signals are designed for emergency works which require no permit.
Pedestrian Capabilities
Access easy adaptability by swapping your traffic heads to pedestrian heads!
Rapid Response in a nutshell
Lightweight Signal
The smaller and slim-line design means that Rapid Response signals can be lifted and manoeuvred without the need for any manual handling aid or wheels.
Quick to Install
Designed with one-person operation in mind, Rapid Response signals can be deployed and set up within minutes and can fully integrate with portable and temporary systems.
Easy to Transport

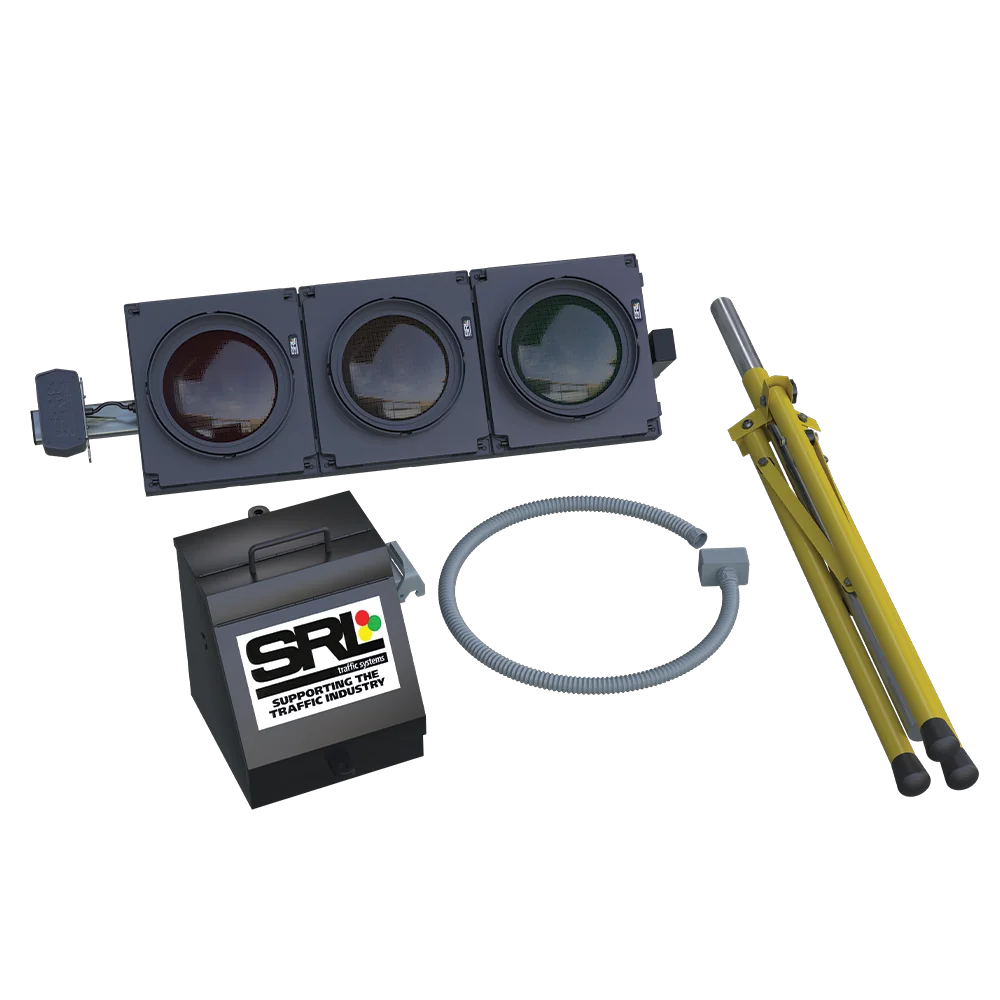

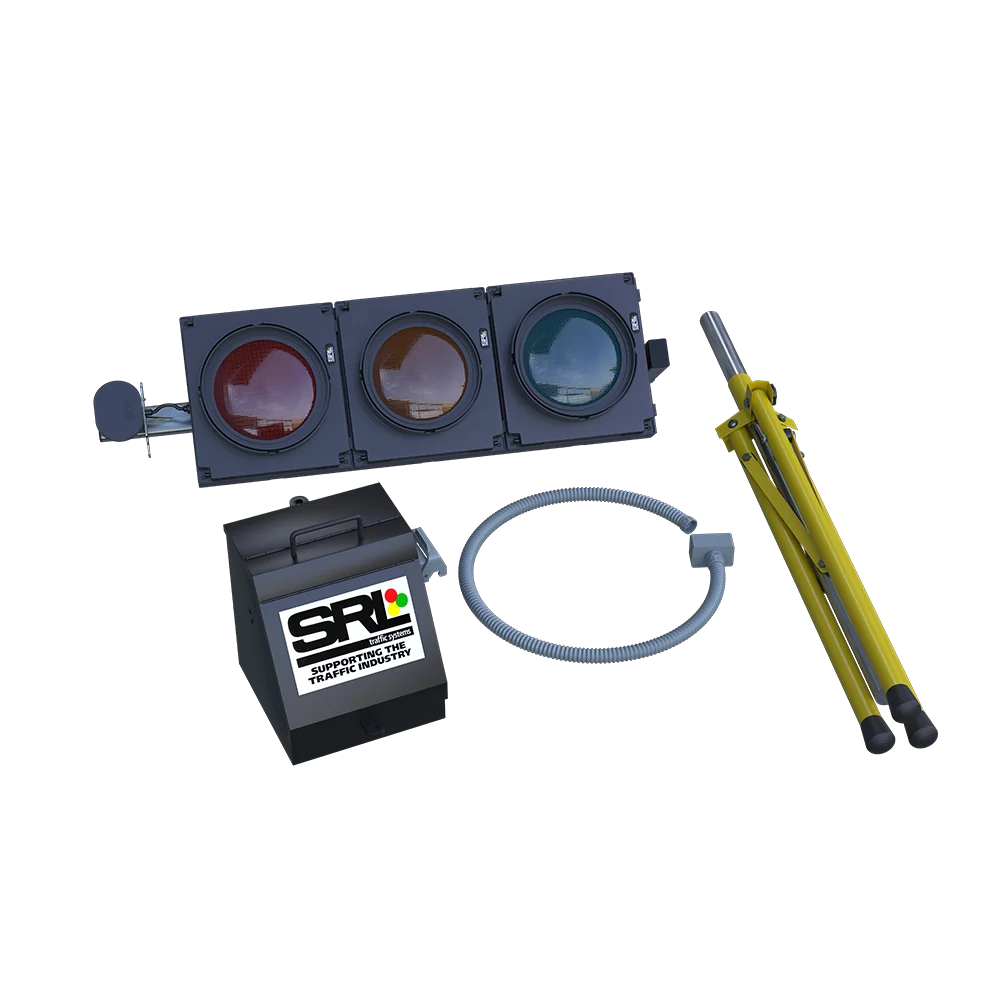

Thanks to it’s collapsible tripod design, detachable head, and smaller battery, Rapid Response does not need a trailer and can simply be transported in the back of a car or small van in most cases.
Multiphase ADS Compatible
Add our intelligent ADS detector onto your Rapid Response signals to help improved the traffic flow and reduce traffic queues by 50%.
Pedestrian Capability
Use Rapid Response for pedestrian phases as well as traffic phases for sites that require pedestrian crossing access.
Double Head Capability
Add a double head configuration onto your Rapid Response unit to place a traffic signal on both sides of the road on the same approach.
Highways Approved
Rapid Response meets all the relevant highways approvals ensuring it is safe to use on the UK’s road including; Highways Agency Approvals TR 2502 (Equivalent), TR 2503, TR 2504, TR 2537 and TR 2538.
Compare
Rapid Response is only suitable for works that will last less than 24 hours. For longer works, take a look at our portable traffic signals.
|
Features |
|
|
|
|
|
|
|
Viewing
|
|---|---|---|---|---|---|---|---|---|
| Product Variant | Advanced | Basic | Premium | Standard | Premium | Premium Solar | Intelligent Temporary | Basic |
| Ideal Application | 2-18 Signals with Peds | 2-4 Signals with Peds | 2-24 Signals with Peds | 2-8 Signals with Peds | 2-8 Signals with Peds | N/A | 10 – 64 Signals | 2-4 Signals |
| Failure Mode | All Red / All Off (Toggle) | All Red | All Off | All Red | All Off | All Red / All Off (Toggle) | All Off | All Red / All Off |
| Pedestrian Functionality | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| TOPAS Registered | 2537A / 2538A / 2503A | No | 2540A | No | No Applicable Spec. | 2537A / 2538A / 2503A | 2500A | No |
| BS 7671 Compliant | No | No | Yes | No | Yes | No | No | No |
| BS 7987 Compliant (IP56) | No | No | Yes | No | Yes | No | No | No |
| Voltage | 12v | 12v | 12v | 12v | 12v | 12v | 240v | 12v |
| Battery Box Size | Standard | Standard | Standard | Standard | Standard | Temporary | N/A | N/A |
| No. of Batteries | 3 | 3 | 3 | 3 | 3 | 6 | N/A | 1 |
| Battery Type | Lead Acid / AGM | Lead Acid / AGM | Lead Acid / AGM | Lead Acid / AGM | Lead Acid / AGM | AGM | N/A – Mains Power | Lithium |
| Multiphase ADS Compatible | Yes | No | Yes | No | Yes | Yes | No | Yes |
| UTMC Compatible | Yes | No | Yes | No | Yes | Yes | Yes | No |
| HSE/ESG Rating | ★★☆☆☆ | ★★☆☆☆ | ★★★★☆ | ★★☆☆☆ | ★★★★☆ | ★★★★★ | ★★★★★ | ★★☆☆☆ |
| Signal Weight Exc. Batteries (kg) | 91 | 91 | 84 | 91 | 84 | 210 | N/A | 28.1 |
| Signal Weight Inc. Batteries (kg) | 160 | 160 | 153 | 160 | 153 | 408 | N/A | 34.1 |
| Battery Weight (kg) | 69 (LA) / 99 (AGM) | 69 (LA) / 99 (AGM) | 69 (LA) / 99 (AGM) | 69 (LA) / 99 (AGM) | 69 (LA) / 99 (AGM) | 198 | N/A | 6 |
| Battery Run Time (days) | 7 (LA) / 12 (AGM) | 10(LA) / 13 (AGM) | 9 (LA) / 16 (AGM) | 7 (LA) / 13 (AGM) | 9 (LA) / 16 (AGM) | 365 | N/A | 1 |
| Battery Box Width (mm) | 710 | 710 | 710 | 710 | 710 | 920 | 900 | 290 |
| Battery Box Length (mm) | 800 | 800 | 800 | 800 | 800 | 800 | 900 | 290 |
| Radio Management System | No | No | Yes | No | Yes | 2-24 Signals with Peds | Cable Comms | No |
| All Permanent Signal Functionality | No | No | No | No | No | No | Yes | No |
| Multiphase ADS Autoconfiguration | No | No | Yes | No | Yes | Yes | No | No |
| REMOS Compatible | No | No | Yes | No | Yes | Yes | No | No |
| Signal Dimming (extends run time) | Yes | No | Yes | No | Yes | Yes | No | Yes |
| SRL Solar PLUS (Optional) | Yes | Yes | Yes | No | Yes | Included | N/A | No |
| View this Product | View this Product | View this Product | View this Product | View this Product | View this Product | View this Product |
Key Features

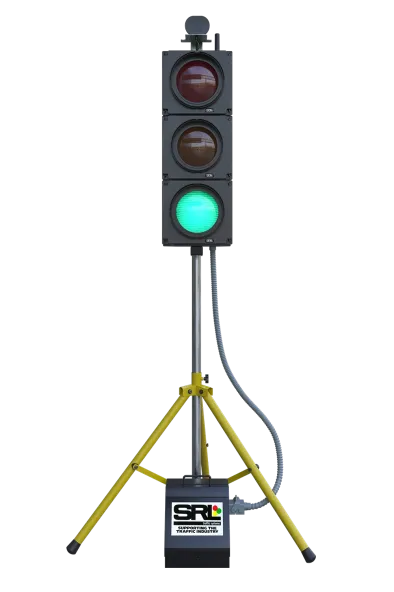

Rapid Response offers a compact, foldable design that makes it ideal for urgent, on-the-go deployments as no trailer is required. Perfect for emergency works, its 24-hour battery life and highways approvals mean you can set up quickly and confidently on any site without any worry. Easily transportable, it’s the ultimate ‘grab-and-go’ signal, stowing with your other tools for fast, effective setup anytime.
Rapid Response can be deployed up to a 4-way setup with up to four phases, perfect for managing traffic on unexpected worksites. Combined with our intelligent Multiphase ADS system, it reduces queues by 50%, enhancing road user satisfaction. Versatile in design, Rapid Response supports double-head configurations and can integrate pedestrian heads and phases, adapting to diverse site layouts and providing flexible, efficient traffic control for any situation.
The weatherproof battery hub protects the compact battery, giving Rapid Response signals a runtime of up to 24 hours. Exclusively available from SRL, the battery includes a custom charger for added unit protection. Weighing just 15.5kg (6kg battery), the battery fits neatly between the tripod legs, making it easy to carry and quick to deploy - ideal for efficient, reliable signal setup in any conditions.
